GrooveA 52

GrooveA 52

2.4GHz/5GHz AP/Backbone/CPE, N-male connector, includes 2.4GHz/5GHz 6dBi Omni Antenna

$79.00
Back-Order, Contact us for the ETA
 Product available for orders

Our smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built-in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high output power! GrooveA has also supported AP mode.

With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

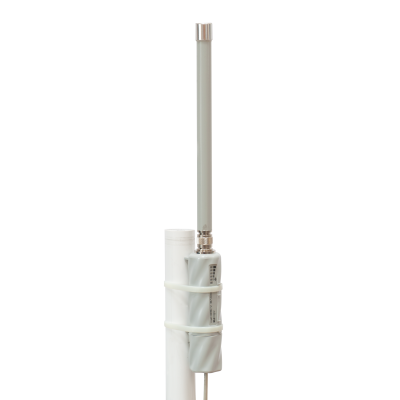

NEW- now comes packaged with an Omnidirectional antenna (6dBi 2.4GHz, 8dBi 5GHz)!

Box contains Groove unit, mounting loops, PoE injector, power adapter, Omnidirectional antenna (6dBi 2.4GHz, 8dBi 5GHz).

We have two versions available.

- RBGrooveA-52HPn-US (USA) is factory locked for 2412-2462MHz, 5170-5250MHz and 5725-5835MHz frequencies. This lock cannot be removed.

- RBGrooveA-52HPn (International) supports 2412-2484MHz and 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).

Wireless specifications

2.4 GHzTransmit (dBm)Receive Sensitivity
1MBit/s 27 -97
11MBit/s 27 -91
6MBit/s 27 -93
54MBit/s 24 -75
MCS0 27 -93
MCS7 23 -70
5 GHzTransmit (dBm)Receive Sensitivity
6MBit/s 27 -93
54MBit/s 23 -75
MCS0 26 -93
MCS7 22 -70

Ethernet test results

RBGrooveA-52HPnr2 AR9342 100M 1 port test
Mode Configuration 1518 byte 512 byte 64 byte
kbps Mbps kbps Mbps kpps Mbps
Bridging none (fast path) 8.1 98.4 23.5 96.3 148.0 75.8
Bridging 25 bridge filter rules 8.1 98.4 23.5 96.3 87.6 44.9
Routing none (fast path) 8.1 98.4 23.5 96.3 148.0 75.8
Routing 25 simple queues 8.1 98.4 23.5 96.3 106.6 54.6
Routing 25 IP filter rules 8.1 98.4 23.5 96.3 60.5 31.0
  1. All tests are done with Xena Networks specialized test equipment (XenaBay) and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results

RB GrooveA-52HPn
17.70 cm
4.40 cm
4.40 cm
Data sheet
Product code
RBGrooveA-52HPn
Architecture
MIPSBE
CPU
AR9342
CPU core count
1
CPU nominal frequency
600 MHz
Dimensions
177x44x44mm, 193g
License level
4
Operating System
RouterOS
Size of RAM
64 MB
Storage size
16 MB
Storage type
FLASH
Tested ambient temperature
-30C to +70C
Max Power consumption
6 W
PoE in
Passive PoE
PoE in input Voltage
9-30 V
Number of DC inputs
1 (PoE-IN)
10/100 Ethernet ports
1
Voltage Monitor
Yes
PCB temperature monitor
Yes
Max power consumption without attachments
6 W
Wireless 5 GHz number of chains
1
Wireless 5 GHz standards
802.11a/b/g/n
Antenna gain dBi for 5 GHz
6
Wireless 5 GHz chip model
AR9342
